QUINT-PS/ 3AC/24DC/20
11

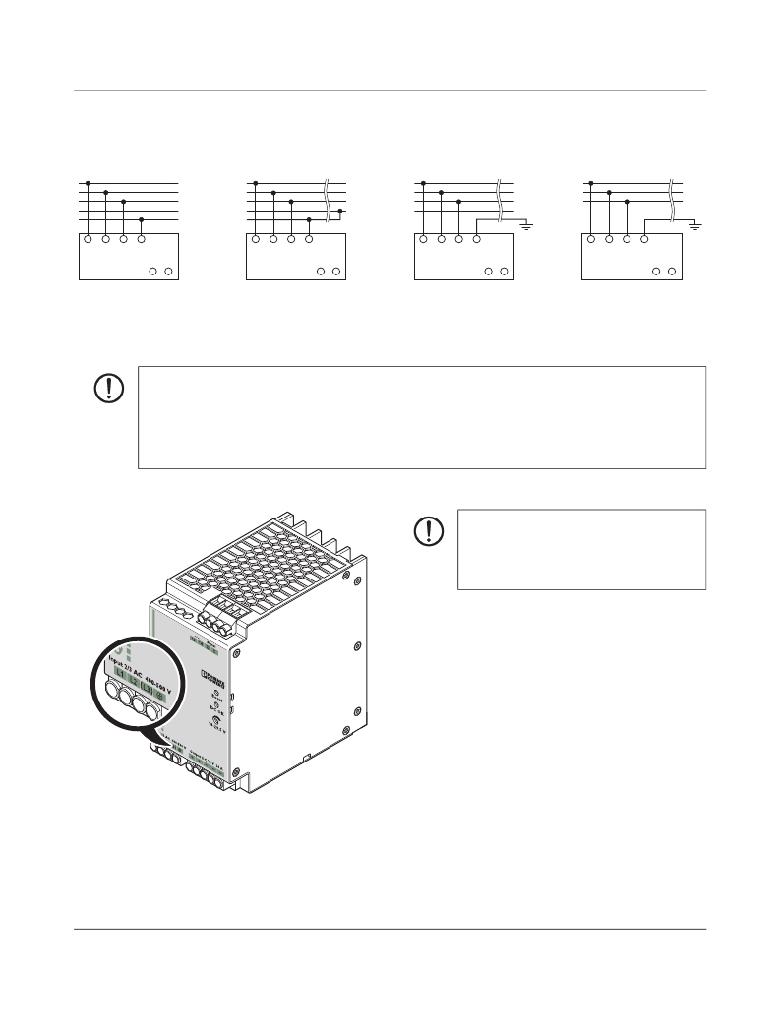

Connection to various systems
TN-S
L1
L2
L3
N
PE
TN-C
L1
L2
L3
PEN
TT
L1
L2
L3
N
iT
L1
L2
L3
L1 L2 L3 PE
+
-
L1 L2 L3 PE
+
-
L1 L2 L3 PE
+
-
L1 L2 L3 PE
+
-
The connection for 3x 400 V AC ... 500 V AC is achieved using the L1, L2, L3 and PE screw connections.
The device can be connected to 3-phase systems with nominal voltages 3x 400 V AC ... 500 V AC are connected. In the
event of a phase failure, unrestricted operation is possible with nominal capacity.
An operation in DC networks is also possible without any limitations.
ATTENTION
In DC applications, a suitable fuse must be wired upstream!
Connect not more than one power supply unit to a fuse or a power switch.
Suggestion: In AC connections, connect a maximum of one power supply unit to a fuse or a power switch.
In order to comply with UL approval, use copper cables with an operating temperature of > 75°C (ambient
temperature < 55°C) and > 90°C (ambient temperature < 75°C).
12
Input
ATTENTION
If an external fuse is triggered, there is most
probably a malfunction in the device. In this
case, the device must be inspected in the
factory!
Protection of the primary side
The device must be installed in acc. with the regulations as in
EN 60950. It must be possible to disconnect the device using
a suitable isolating facility outside the power supply. Primary
circuit mains protection, for example, is suitable for this
purpose.
Required backup fuse (device and line protection)
External thermo-magnetic fuses are necessary for device
protection: 2/3 x 6 A, 10 A or 16 A power circuit breaker,
characteristic B (or identical function).
Connect a suitable fuse upstream for DC applications!
303132_en_01
PHOENIX CONTACT
